嵌入式系统

iEi威强电是全球领先的嵌入式系统提供商，不断将产品从组件扩展到系统集成服务。我们对市场和创新技术的深入了解确保我们所有尺寸、性能和功能的嵌入式产品可靠、灵活且可交互。
  • 产品
    • >
  • 嵌入式系統
    • >
比較狀態 :
已設定.要比較機種數 :
已設定.要比較機種 :
列表區塊.Now 位置狀態 :
列表區塊.單位區塊寬 :
列表區塊.Now X 位置 :
列表區塊.目標 X 位置 :
顯示框寬 :
列表寬 :
紧凑型嵌入式电脑

Fanless Ultra Compact Size

Space-saving demand in industrial environment is very common in nowadays. Many applications require a small space for system installation. With the palm-size embedded box design plus its basic IO interface can definitely meet the space-saving requirement.
CPU
I/O
Expansion

uIBX-260-EHL

超紧凑尺寸
● CPU:
Intel® Celeron J6412 2GHz (up to 2.6 GHz, 四核, TDP 10W)
● CPU:
Intel® Celeron J6412 2GHz (up to 2.6 GHz, 四核, TDP 10W)
● USB:
2 x USB 3.2 Gen2
2 x USB 2.0 (可选)
● 网络:
2 x RJ-45 2.5 GbE by I225V controller
● 显示:
1 x HDMI™ 1.4b (up to 4k@ 30Hz)
● 串口:
1 x RS-232/422/485 (DB9)
1 x RS-232 (可选)
● TPM:
支持Intel PTT
● 无线/蓝牙:
1 x 802.11a/b/g/n/ac (M.2 A Key可选)
● 看门狗定时器:
可编程1 ~ 255 秒/分钟
● USB:
2 x USB 3.2 Gen2
2 x USB 2.0 (可选)
● 网络:
2 x RJ-45 2.5 GbE by I225V controller
● 显示:
1 x HDMI™ 1.4b (up to 4k@ 30Hz)
● 串口:
1 x RS-232/422/485 (DB9)
1 x RS-232 (可选)
● TPM:
支持Intel PTT
● 无线/蓝牙:
1 x 802.11a/b/g/n/ac (M.2 A Key可选)
● 看门狗定时器:
可编程1 ~ 255 秒/分钟
● M.2:
1 x 2230 A-key (PCIe Gen3 x1/ USB2.0)
1 x 2280 M-key (PCIe Gen3 x2)
● M.2:
1 x 2230 A-key (PCIe Gen3 x1/ USB2.0)
1 x 2280 M-key (PCIe Gen3 x2)
View Products

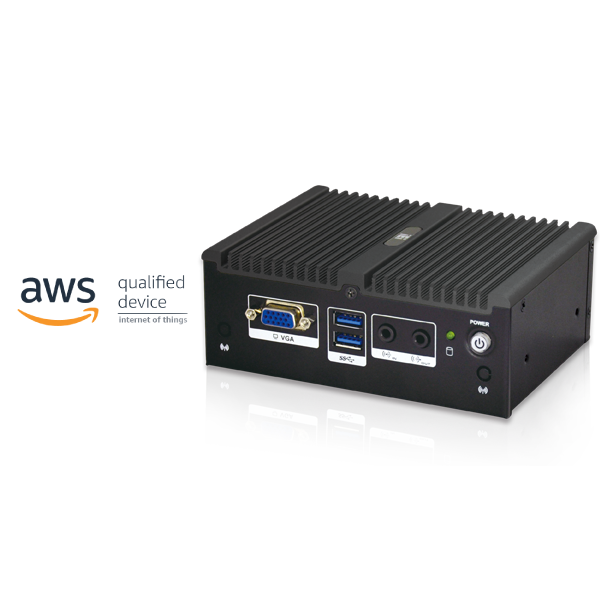

uIBX-250-BW

Ultra Compact Size
Intel® Celeron® N3160
(up to 2.24 GHz, quad-core, 2 MB cache, TDP=6W)
Intel® Celeron® N3160
(up to 2.24 GHz, quad-core, 2 MB cache, TDP=6W)
4 x USB 3.0
2 x RJ-45 PCIe GbE by Intel® i210 controller
2 x RJ-45 RS-232/422/485
1 x HDMI™, 1 x VGA
1 x Line-out, 1 x Mic-in
4 x USB 3.0
2 x RJ-45 PCIe GbE by Intel® i210 controller
2 x RJ-45 RS-232/422/485
1 x HDMI™, 1 x VGA
1 x Line-out, 1 x Mic-in
1 x Full-size PCIe Mini card (co-lay mSATA)
1 x Full-size PCIe Mini card (co-lay mSATA)
View Products

TANGO Series

The TANGO series is an industrial mini PC in a space-saving design. With light, small but robust chassis ensuring durability and reliability, the mini PC can be set up in an instant and taken almost anywhere, even in harsh environment. It is ideal for enterprises, digital signage, industrial data transmission gateway and self-service applications.
CPU
I/O
Expansion

TANGO-7010

紧凑尺寸
12th Intel® Core™ i Processors
12th Intel® Core™ i Processors
● USB:
2 x USB3.2 Gen2
2 x USB3.2 Gen1
● 网络:
3 x RJ-45 2.5 GbE by I226V controller
● 显示:
2 x HDMI™ 2.0B Support CEC (up to 4k@ 60Hz)
1 x DP 1.4 (up to 4k@ 60Hz)
● 串口:
1x RS-232 (DB9)
1x RS-232/422/485 (DB9)
● TPM:
支持Intel PTT
● 无线/蓝牙:
INTEL AX210 WiFi 6E &蓝牙5.2模块带 2T2R天线
● 看门狗定时器:
可编程1 ~ 255 秒/分钟
● USB:
2 x USB3.2 Gen2
2 x USB3.2 Gen1
● 网络:
3 x RJ-45 2.5 GbE by I226V controller
● 显示:
2 x HDMI™ 2.0B Support CEC (up to 4k@ 60Hz)
1 x DP 1.4 (up to 4k@ 60Hz)
● 串口:
1x RS-232 (DB9)
1x RS-232/422/485 (DB9)
● TPM:
支持Intel PTT
● 无线/蓝牙:
INTEL AX210 WiFi 6E &蓝牙5.2模块带 2T2R天线
● 看门狗定时器:
可编程1 ~ 255 秒/分钟
● M.2:
1 x 2230 E-key (PCIex1/USB2.0)(预装无线模块)
1 x 2280 M-key (PCIe Gen4 x4)
1 x 2280 M-key (PCIe Gen3 x4)
● M.2:
1 x 2230 E-key (PCIex1/USB2.0)(预装无线模块)
1 x 2280 M-key (PCIe Gen4 x4)
1 x 2280 M-key (PCIe Gen3 x4)
View Products

TANGO-3010

超紧凑尺寸
● CPU:
Intel® Celeron J6412 2GHz (up to 2.6 GHz, 四核, TDP 10W)
● CPU:
Intel® Celeron J6412 2GHz (up to 2.6 GHz, 四核, TDP 10W)
● USB:
2 x USB 3.2 Gen2
2 x USB 2.0
● 网络:
3 x RJ-45 2.5 GbE by I226V controller
● 显示:
2 x HDMI™
● 串口:
1 x RS-232 (DB9)
1 x RS-232/422/485 (DB9)
● TPM:
支持Intel PTT
● 无线/蓝牙:
INTEL AX210 WiFi 6E &蓝牙5.2模块带 2T2R天线
● 看门狗定时器:
可编程1 ~ 255 秒/分钟
● USB:
2 x USB 3.2 Gen2
2 x USB 2.0
● 网络:
3 x RJ-45 2.5 GbE by I226V controller
● 显示:
2 x HDMI™
● 串口:
1 x RS-232 (DB9)
1 x RS-232/422/485 (DB9)
● TPM:
支持Intel PTT
● 无线/蓝牙:
INTEL AX210 WiFi 6E &蓝牙5.2模块带 2T2R天线
● 看门狗定时器:
可编程1 ~ 255 秒/分钟
● M.2:
1 x 2230 A-key (PCIe x1/USB2.0)(预装无线模块)
1 x 2280 M-key (PCIe x4)
● M.2:
1 x 2230 A-key (PCIe x1/USB2.0)(预装无线模块)
1 x 2280 M-key (PCIe x4)
View Products
