Specifications
Performance
Connectivity
![](https://webdls.ieiworld.com/data/_prod-detail-feature/PICOe-EHL/P2-1.webp)
![](https://webdls.ieiworld.com/data/_prod-detail-feature/PICOe-EHL/P2-2.webp)

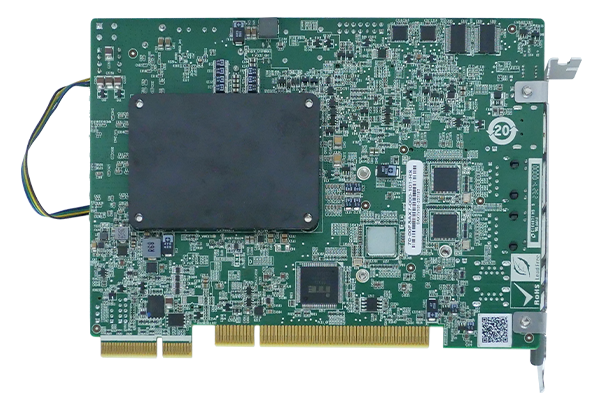

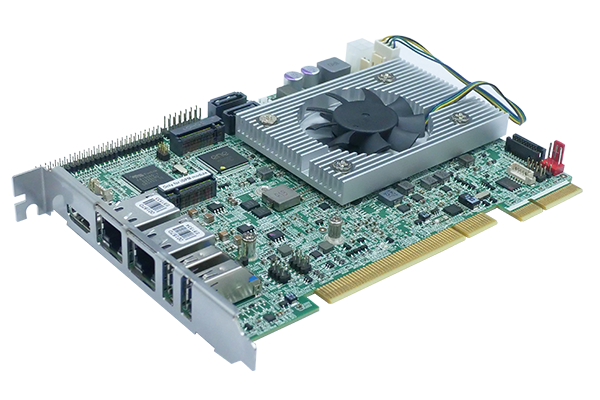

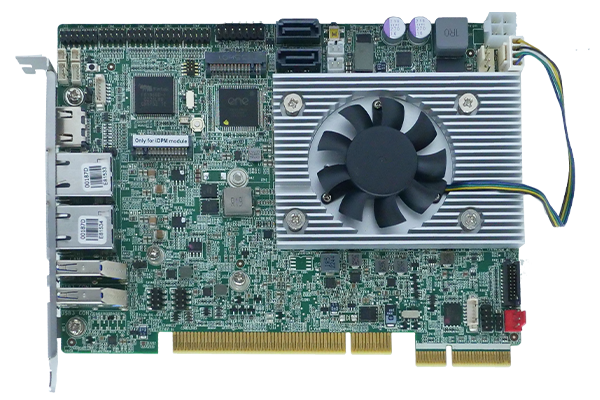

Quad-Core Intel® Celeron® Processor J6412
Ideal for embedded applications, IEI's PICOe-EHL provides exceptional performance and energy efficiency. It has a 75% performance gain over the previous generation, up to a 1.7x improvement in single-thread performance and up to a 1.5x improvement in multi-thread performance. Its quad-core Intel® Celeron® J6412 SoC ensures swift processing at frequencies up to 2.6GHz, while the 1.5M cache enhances overall responsiveness. With a remarkable TDP of only 10W, this device offers unparalleled power efficiency.
![](https://webdls.ieiworld.com/data/_prod-detail-feature/PICOe-EHL/P3.webp)
8GB LPDDR4x On-Board Memory
The PICOe-EHL is equipped with robust 8GB LPDDR4x on-board memory, widely utilized for applications in high-vibration and shock-prone environments. With onboard memory, it offers flexible space utilization, enhanced reliability, and mitigates issues related to memory poor contact, making it particularly well-suited for industrial applications.
![](https://webdls.ieiworld.com/data/_prod-detail-feature/PICOe-EHL/P7-1.webp)
Dual Independent Displays with up to 4K Resolution
Featuring Intel® UHD Graphics with a maximum of 16 execution units (EUs), this half-size PCIe CPU card offers superior graphics capabilities, enabling smooth and immersive visual experiences. Whether you are running graphics-intensive applications or demanding multimedia content, it delivers outstanding performance. Furthermore, the PICOe-EHL is capable of supporting a maximum resolution of 4kp60 across two simultaneous displays through HDMI 1.4 (up to 4096 x 2160@30Hz), and the optional iDPM module.
Storage and Networking
M.2 PCIe NVMe SSD
Dual Intel® Ethernet
![](https://webdls.ieiworld.com/data/_prod-detail-feature/PICOe-EHL/P5-1.webp)
![](https://webdls.ieiworld.com/data/_prod-detail-feature/PICOe-EHL/P5-2.webp)
One PCIe Gen3 M.2 slot provides support for NVMe SSD, giving a significant performance boost. It allows for faster data transfer rates, reducing loading times and improving overall system responsiveness. Upgrade your system today and witness the extraordinary performance gains it brings.
![](https://webdls.ieiworld.com/data/_prod-detail-feature/PICOe-EHL/P5-3.webp)
The PICOe-EHL is equipped with two Intel 1GbE controllers, which are ready for the latest-performance router. With two 1GbE ports owning the benefits of low-latency, high-throughput and cost-effective, the PICOe-EHL can meet the bandwidth-intensive requirements such as large file transfers and high resolution video streaming, which is ideal for machine vision and AI edge computing applications.
Various Backplane and Chasis
![](https://webdls.ieiworld.com/data/_prod-detail-feature/PICOe-EHL/P7-1.webp)
Optional Accessories
Converter Board
Cables and Connectors
Backplanes
![32102-000100-200-RS](https://webdls.ieiworld.com/data/_prod-detail-feature/KINO-ADL-H610/P10-7.webp)
32205-000702-200-RS
• Serial port cable
• Dimension: (L) 230mm
• 10-pin (2x5) connector
People Also Viewed
Hardware Spec.
尺寸类型 | |
---|---|
尺寸类型 | Half Size SBC |
系统 | |
CPU | Intel® Elkhart Lake Celeron® J6412 板载 SoC(支持高达 2.6GH,4 核,1.5M 缓存,TDP=10W) |
内存 | LPDDR4x-3200Gbps 8GB, 内存上限 16GB |
内存上限 | 16GB |
物理特性 | |
尺寸 (LxWxH) (mm) | 185 mm x 126 mm |
净重 | 420g |
存储 | |
存储 | 2 x SATA 6Gb/s |
I/O 接口 | |

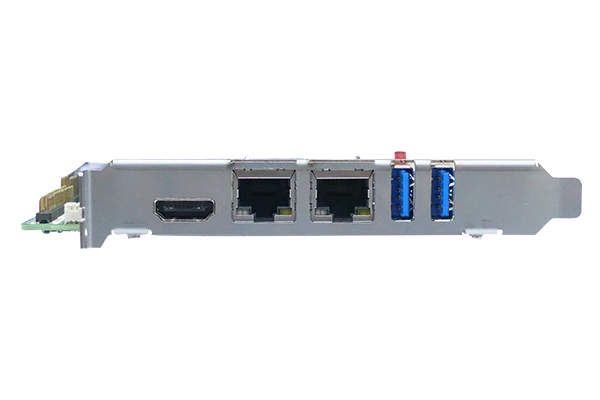

显示输出 | 1 x HDMI™ : 高达 4096 x 2160 @30Hz |
1 x iDPM : 支持iEi eDP/ LVDS/ VGA 模块 | |
网络 |
2 x LAN - LAN1: Intel® I210 controller LAN2: Intel® I210 controller |
音频 | 1 x HD Audio : iAUDIO(2 x 5 pin, 支持 IEI AC-KIT-888HD 音频模块) |
I/O接口 | 2 x 内部RS-232 : 2x5 pin, P=2.0 |
2 x 内部RS-232/422/485 : 2x5 pin, P=2.0 | |
4 x 内部 USB 2.0 : 2x4 pin, P=2.0 | |
2 x 外部 USB 3.2 Gen2x1 : 10Gb/s(Type A) | |
扩展 | 1 x PCIe x4 : to the backplane (1 x PCIe x4 or 4 x PCIe x1) |
4 x PCI Slot : to the backplane | |
1 x M.2(NGFF) : M Key (2242/2280) PCIe Gen3 x2 | |
电源 | |
电源功耗 |
5V@6.39A, 5VSB@0.22A, 12V@0.96A (Intel® Celeron® J6412 CPU with 8 GB 3200 MHz LPDDR4x memory, max. loading, EuP mode enabled) |
电源供电 |
1 x 内部 12V 电源接口 (2x2 pin) 支持AT/ATX模式 符合 ErP/EuP |
环境 | |
操作温度 | 0°C~60°C |
存储温度 | -20°C~70°C |
Humidity | 5% ~95%, 无冷凝 |
Ordering Information
PICOe-EHL-J6412C-R10 | Half-size PCIe CPU Card supports Intel® Elkhart Lake Processor Intel® Celeron® J6412 on-board SoC, with 8GB LPDDR4x memory on board default, DDR4, HDMI™,iDPM display module,Dual Lan, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS |
---|
Package Contents
Package Content |
|
---|
