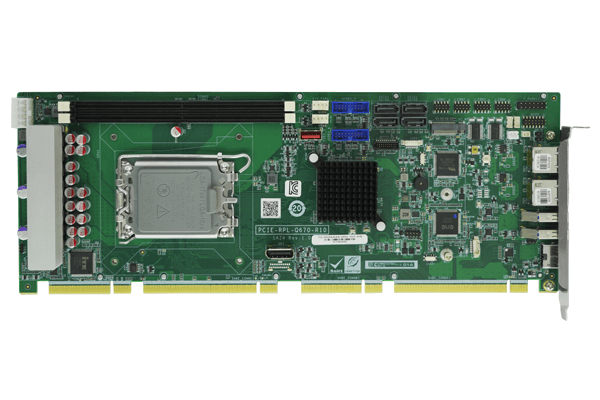

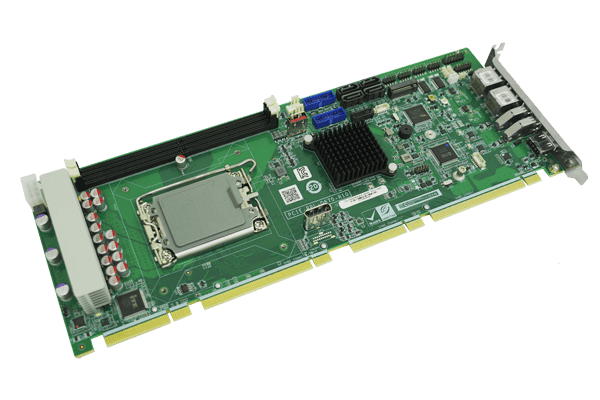

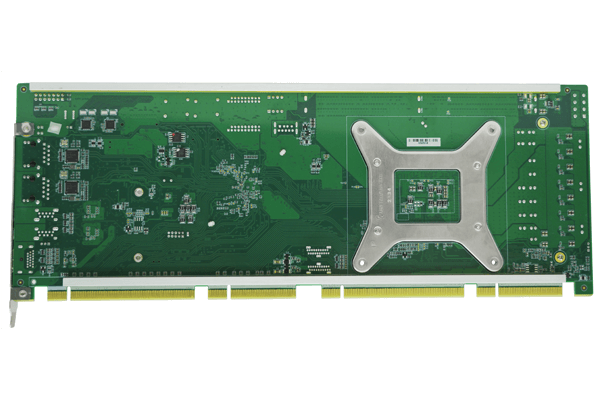

» Full-size PICMG 1.3 CPU Card 支持 LGA1700 Intel® 12th/13th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E
» 支持 two 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs
» 独立三显：支持两个 DP and HDMI™
» 支持Intel® I226-LM and Intel® I226V 2.5GbE controller
» 支持 M.2 M key 扩展
Hardware Spec.
| 尺寸类型 | |
|---|---|
| 尺寸类型 | Full Size Single Board Computer |
| 系统 | |
| CPU | LGA1700 socket 支持 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (高达65W) |
| 芯片组 | Intel® Q670E/Q670 |
| 内存 | 两个 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs |
| 内存上限 | 高达 64G |
| 散热方案/系统风扇 |
1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| 物理特性 | |
| 尺寸 (LxWxH) (mm) | 338 mm x 126 mm |
| 净重 | GW:1000g / NW:500g |
| 存储 | |
| 存储 | 4 x SATA : 6Gb/s |
| I/O 接口 | |

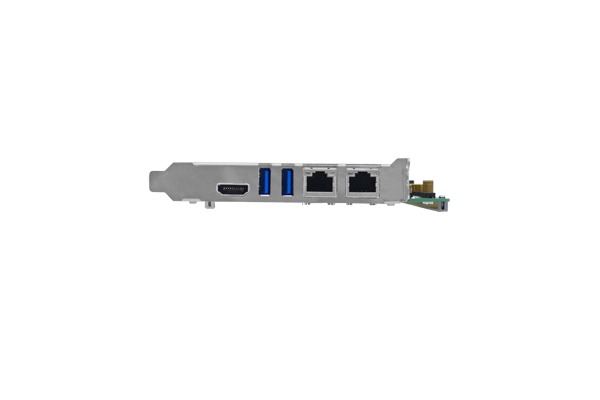

| 显示输出 | 1 x HDMI™ : 4K@30 |
| 2 x Display Port : 4K@60, 180° | |
| 网络 |
2 x LAN - LAN1: Intel® I226-LM 2.5GbE controller LAN2: Intel® I226-V 2.5GbE controller |
| 音频 | HD Audio : 1 x iAUDIO, 支持 IEI AC-KIT-888S Audio Module (2 x 5 pin) |
| I/O接口 | 2 x 内部RS-232 : 2x5 pin, P=2.54 |
| 2 x 内部RS-232/422/485 : 2x5 pin, P=2.54 (RS485 支持 AFC) | |
| 1 x DIO 12-bit digital I/O (2x7 pin) | |
| 2 x 外部 USB 3.2 Gen2x1 : 10Gb/s | |
| 1 x Internal USB 3.2 Gen2x1 : Type A 180° | |
| 4 x Internal USB 3.2 Gen1x2 : 2 X 10 pin P=2.00 (5Gb/s) | |
| 1 x I²C : 1x4 pin | |
| 扩展 |
描述: 1 x PCIe Gen3 x16 & 4 x PCIe Gen3 x1 信号通过金手指 4 x PCI 信号通过金手指 |
| Other Features | |
| TPM | 支持 TPM 2.0 (TPM-IN03 module) & Intel PTT |
| 电源 | |
| 电源功耗 |
3.3V@2.39A, 5V@9.68A, 12V@6.56A, 5VSB@0.35A (Transcend JM5600ALE CPU with 16 GB 5600 MHz DDR5 memory, EuP mode disabled) |
| 电源供电 |
ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| 环境 | |
| 操作温度 | -10°C ~ 60°C |
| 存储温度 | -30°C ~ 70°C |
| Humidity | 5% ~95%, 无冷凝 |
| Card Slot Interface | |
| M.2 | 1 x M.2 M Key (2242/2280, PCIe Gen3 x4 ) 支持NVMe |
Ordering Information
| PCIE-RPL-Q670-R10 | Full-size PICMG 1.3 CPU Card supports LGA1700 Intel® 12th/13th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E, DDR5, HDMI,iDPM display module,Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
