» 前置 OSD，便于设置调整
» 前置扬声器，即使在面板安装中也能确保清晰的声音传输
» 支持戴手套操作和防水保护
» 内置摄像头，适用于 AI 面部识别
» USB 3.2 Gen1 Type-A 支持 10W
» 符合 IP65 标准的前面板与铝制框架
» 防眩光和抗紫外线
Hardware Spec.
| Display | |
|---|---|
| LCD Size | 10.1” (16:10) |
| Brightness(cd/m2) | 400 |
| Max Resolution | 1280 x 800 |
| Contrast Ratio | 800:1 |
| Backlight MTBF(hrs) | 20000 |
| I/O Interface | |
| I/O Ports |

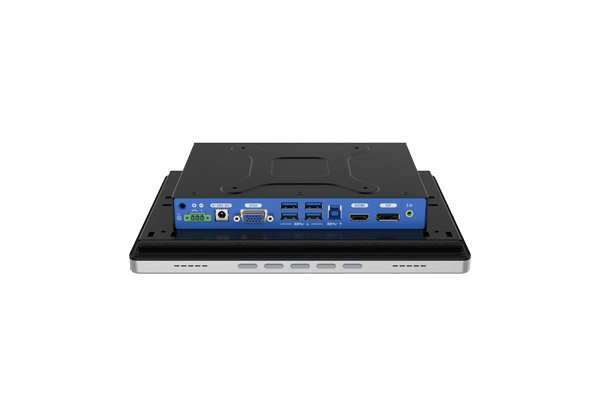

1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort1.1 1 x USB 3.2 Gen1 Type-B 4 x USB 3.2 Gen1 Type-A (5V2A) (Lite 版不带) 1 x Line out 1 x 9V-36V DC jack 1 x 3-pin terminal block |
| Power | |
| 电源输入 | 9V ~ 36V 直流 |
| Environment | |
| 工作温度 | -20°C ~ 60°C |
| 相对湿度 | 10% to 95%@40°C (无冷凝) |
| 存储温度 | -20°C ~ 60°C |
| IP Level | 前面板 IP 65 |
| Physical Characteristics | |
| 机身颜色 | 黑色 |
| 尺寸 (LxWxH) (mm) | 251 x 180.95 x 49.30 |
| Cutout Dimensions | 241.80 x 157.80 |
| LCD | |
| LCD 色彩 | 16.7M |
| 可视角度 (H-V) | 178°/178° |
| Touch | |
| 触摸屏 | 10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface) |
| 触控IC | Capacitive:litek |
Ordering Information
| DM2-W101G-R10 | 10.1" 400 cd/m² 1280 x 800 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10 |
|---|---|
| DM2-W101GL-R10 | 10.1" 400 cd/m² 1280 x 800 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10 |
Package Contents
| Package Content |
|
|---|
