HPCIE-RPL-Q670

Half-size PICMG 1.3 CPU Card 支持 LGA1700 Intel® 12th/13th/14th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E, DDR5, HDMI™, DP, 两个 Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS

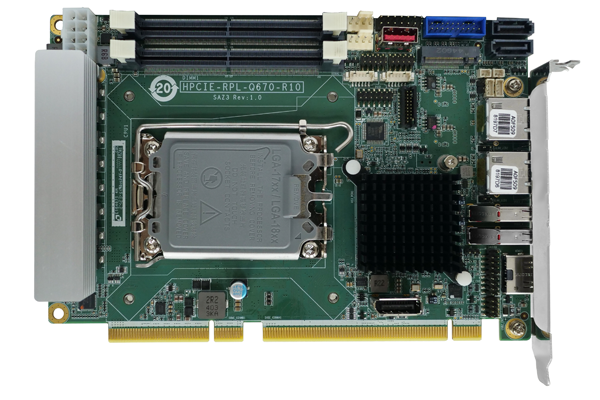

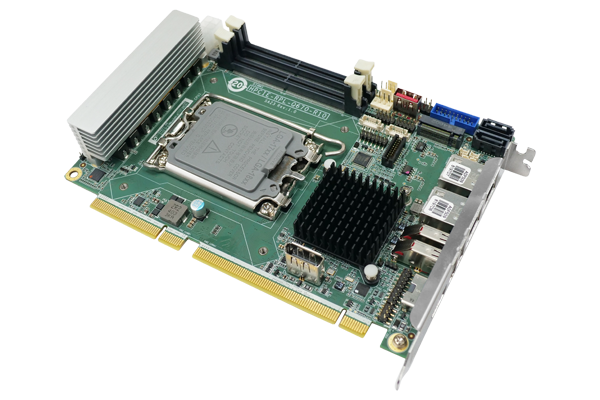

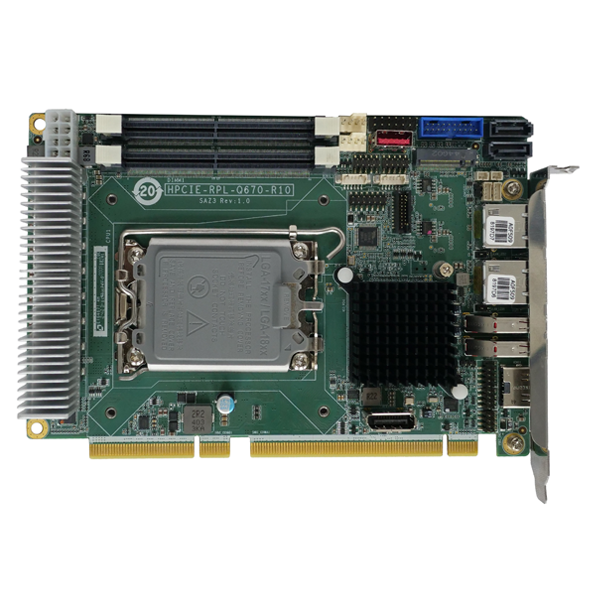

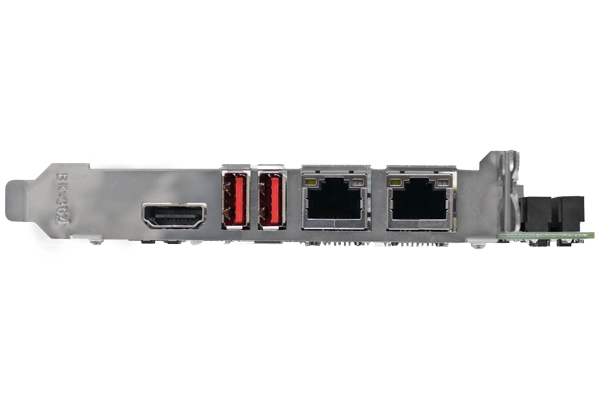

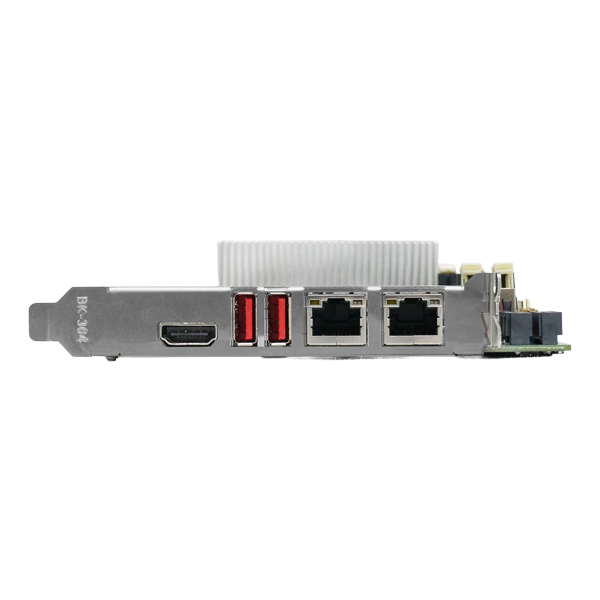

HPCIE-RPL-Q670 IO

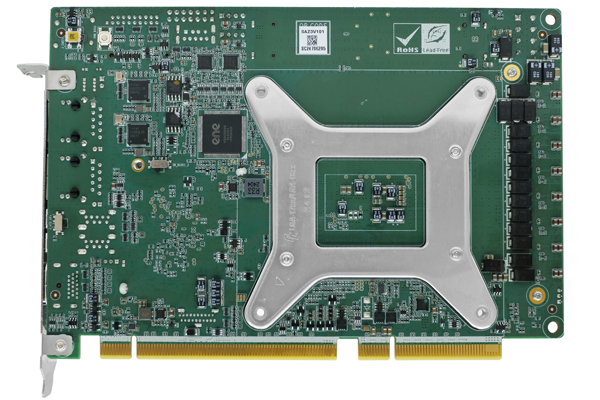

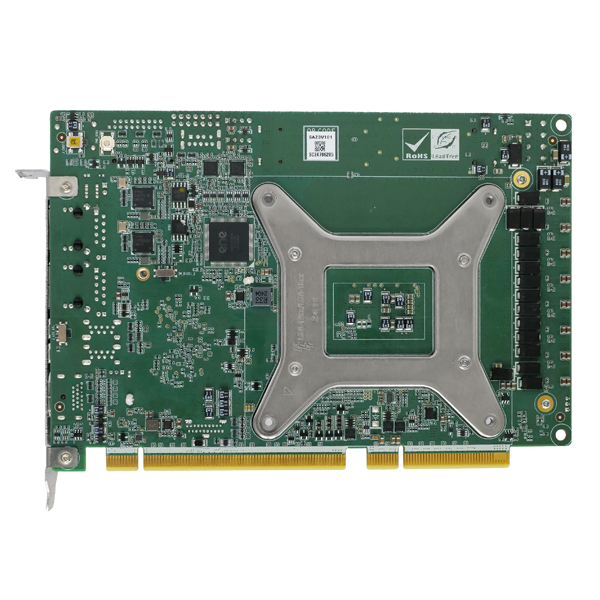

HPCIE-RPL-Q670-back

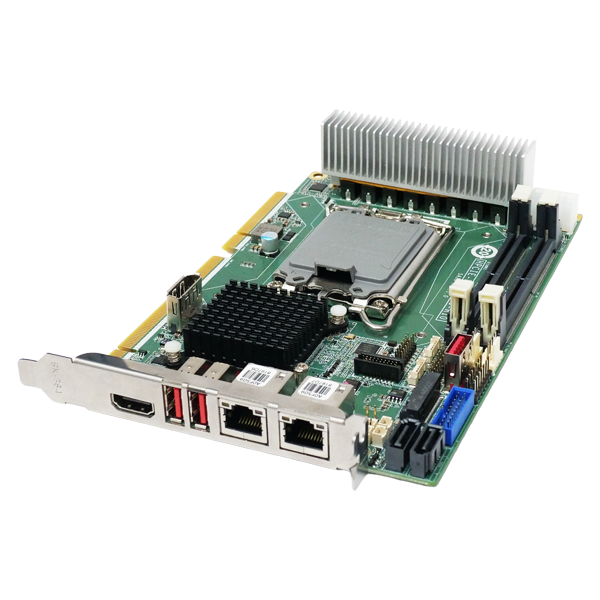

HPCIE-RPL-Q670-left
  • HPCIE-RPL-Q670 IO
  • HPCIE-RPL-Q670-back
  • HPCIE-RPL-Q670-left
» Half-size PICMG 1.3 CPU Card 支持 LGA1700 Intel® 12th/13th/14th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E
» 支持 262-pin 5200 MHz Dual-Channel DDR5 So-DIMMs
» 独立双显:支持DP and HDMI™
» 支持 Intel® I226-LM and Intel® I226V 2.5GbE controller
» 支持 M.2 M key 扩展

Hardware Spec.

尺寸类型
尺寸类型 Half Size Single Board Computer
系统
CPU LGA1700 socket 支持 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (高达 65W)
芯片组 Intel® Q670E/Q670
内存 两个262-pin 5200 MHz Dual-Channel DDR5 So-DIMMs
内存上限 96GB
散热方案/系统风扇 1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x4 pin)
物理特性
尺寸 (LxWxH) (mm) 168 mm x 126 mm
净重 GW:1000g / NW:420g
存储
存储 2 x SATA : 6Gb/s (支持RAID 0/1)
1 x M.2(NGFF) : M Key (2242, PCIe Gen3 x4) 支持 NVMe
I/O 接口
显示输出 1 x HDMI™ : 4K@30Hz
1 x Display Port : 4K@60Hz, 180°
网络 2 x LAN -
LAN1: Intel® I226-LM 2.5GbE controller
LAN2: Intel® I226-V 2.5GbE controller
音频 HD Audio : 1 x iAUDIO, 支持 IEI AC-KIT-888S Audio Module (2 x 5 pin)
I/O接口 2 x 内部RS-232/422/485 : 2x5 pin, P=2.00 (RS485 支持 AFC)
4 x 内部 USB 2.0 : 2x4 pin, P=2.54
1 x DIO : 12-bit digital I/O (2x7 pin)
2 x 外部 USB 3.2 Gen2x1 : 10Gb/s (Type-A)
1 x Internal USB 3.2 Gen2x1 : Type A 180°
2 x Internal USB 3.2 Gen1x2 : 2 X 10 pin P=2.00 (5Gb/s)
1 x I²C : 1x4 pin
扩展 描述: 1 x PCIe Gen3 x16 & 4 x PCIe Gen3 x1 信号通过金手指
Other Features
TPM 支持 TPM 2.0 (TPM-IN03 module) & Intel PTT
电源
电源功耗 3.3V@0.05A, 5V@0.93A, 12V@11.33A, 5VSB@0.37A
(Intel i9-14900 2GHz CPU with Apacer DDR5 5600MT/s SODIMM 32GB memory, EuP mode enabled)
电源供电 ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
环境
操作温度 -10~60℃
存储温度 -30°C ~ 70°C
Humidity 5% ~95%, 无冷凝
Card Slot Interface
M.2 1 x M.2 M Key (2242, PCIe Gen3 x4 ) 支持NVMe

Ordering Information

HPCIE-RPL-Q670-R10 Half-size PICMG 1.3 CPU Card supports LGA1700 Intel® 12th/13th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E, DDR5, HDMI,DP,Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, iAUDIO and RoHS

Package Contents

Package Content
  • 1 x HPCIE-RPL-Q670 single board computer

  • 1 x mini jumper pack

  • 1 x SATA cable

  • 1 x QIG


Download Specs.
