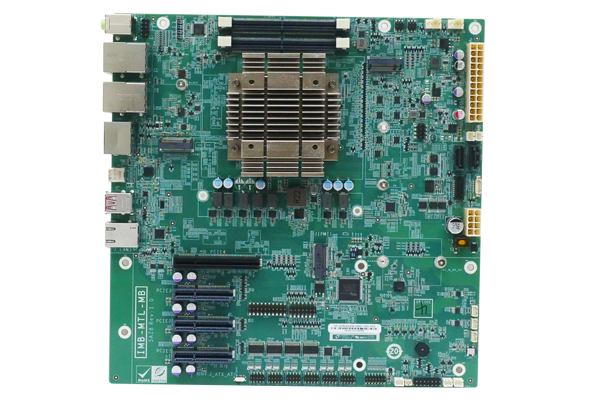

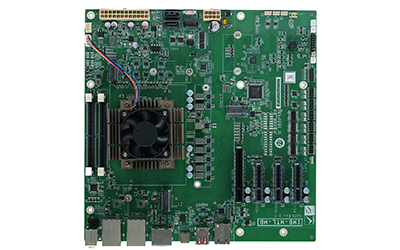

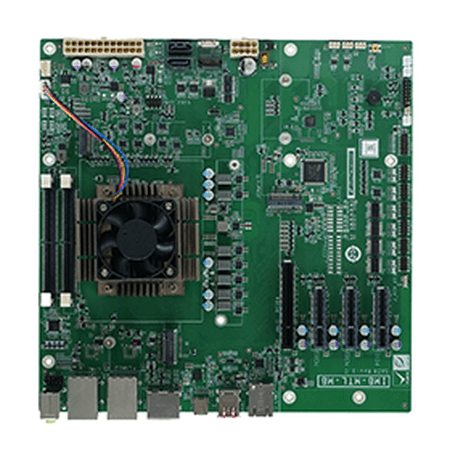

IMB-MTL

micro-ATX motherboard 支持 14th Gen. Intel® mobile Meteor Lake-H on-board 处理器, DDR5, 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio 和 RoHS

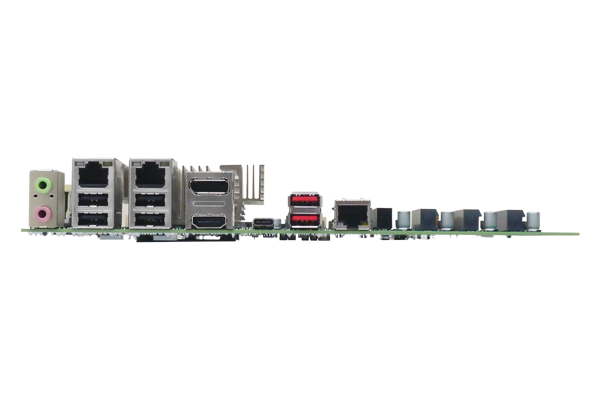

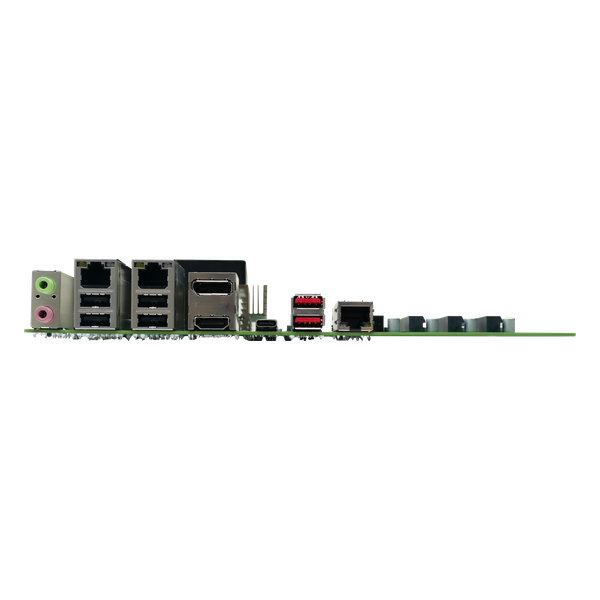

IMB-MTL-IO

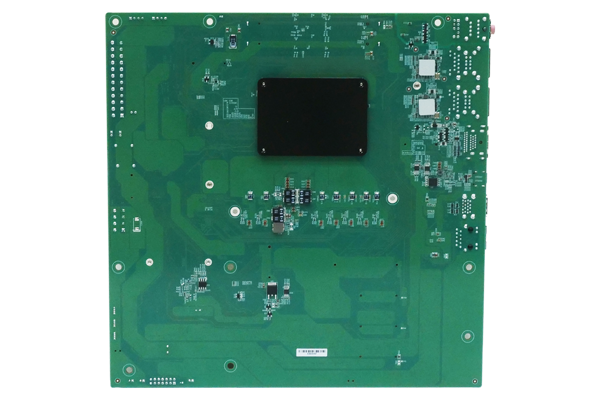

IMB-MTL-back
IMB-MTL-right
  • IMB-MTL-IO
  • IMB-MTL-back
  • IMB-MTL-right
» 14th Gen. Intel® mobile Meteor Lake-H on-board 处理器
» 支持两个 262-pin 5600 MHz DDR5 SO-DIMM, 高达 96GB
» 支持 dual Intel® 2.5GbE 控制器
» Support PCIe Gen5 x8, PCIe Gen4 x4, M.2 M key 和 M.2 B key 扩展

Specifications

Hardware Spec.

尺寸类型
尺寸类型 Micro-ATX
系统
CPU 14th Gen. Intel® mobile Meteor Lake-H on-board 处理器
内存 Two 262-pin 5600 MHz DDR5 SO-DIMM
内存上限 96GB
散热方案/系统风扇 1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x4 pin)
物理特性
尺寸 (LxWxH) (mm) 244mm x 244mm
净重 GW: 1200g / NW: 700g
电源
电源功耗 TBD
电源供电 ATX
环境
操作温度 -10°C ~ 60°C
存储温度 -30°C ~ 70°C
Humidity 5% ~95%, 无冷凝

Ordering Information

IMB-MTL-U7E-R10 Micro-ATX motherboard supports 14th Gen. Intel® Meteor Lake-H 155H on-board processor, DDR5, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMB-MTL-U7A-R10 micro-ATX motherboard supports 14th Gen. Intel® mobile Meteor Lake-H on-board processor, DDR5, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMB-MTL-U5E-R10 Micro-ATX motherboard supports 14th Gen. Intel® Meteor Lake-H 125H on-board processor, DDR5, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMB-MTL-U5A-R10 micro-ATX motherboard supports 14th Gen. Intel® mobile Meteor Lake-H on-board processor, DDR5, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content

  • 1 x IMB-MTL 单板

  • 1 x I/O 挡片

  • 2 x SATA 线

  • 1 x QIG
