IMBAX-SP6

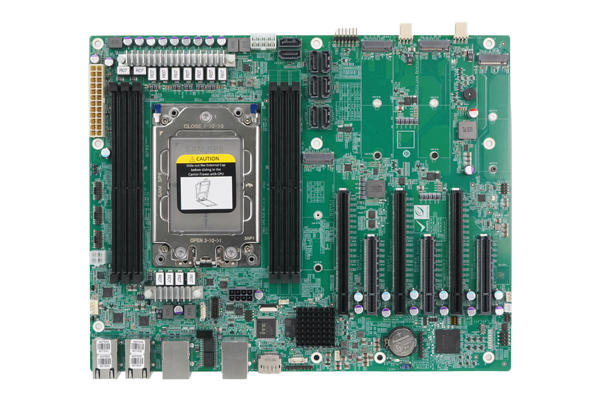

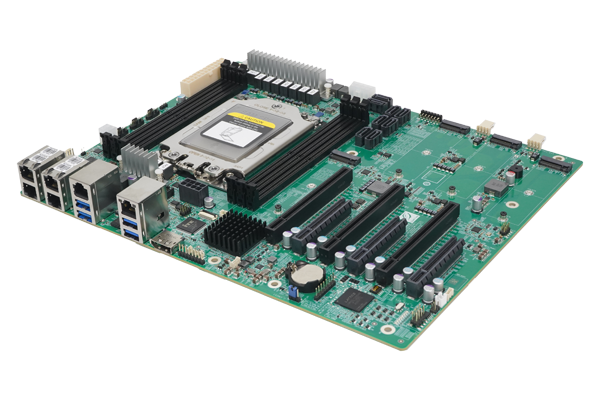

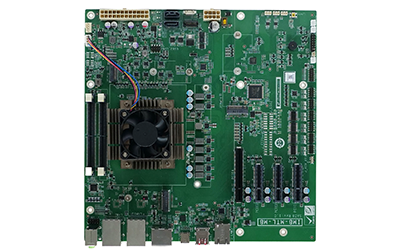

Server grade ATX motherboard, supports AMD SP6 Siena 8-64 cores, 70W-225W TDP ,DDR5, 4 x 2.5GbE LAN, 4 x M.2 slot, RoHS

IMBAX-SP6-IO
IMBAX-SP6-back
IMBAX-SP6-left

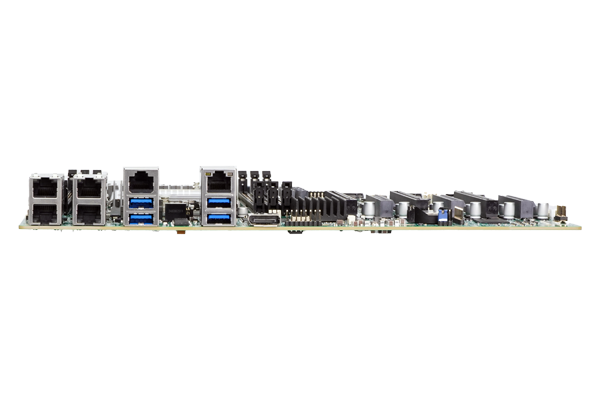

  • IMBAX-SP6-IO

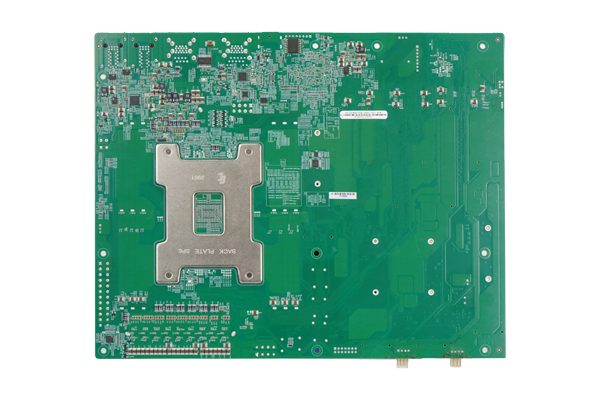

  • IMBAX-SP6-back
  • IMBAX-SP6-left
» ATX motherboard supports AMD SP6 Siena 8-64 cores
» 6 x 96GB 288-pin 4800MHz DDR5 RDIMM with ECC, up to 576GB total
» Support 4 x 2.5GbE LAN
» Support 1 x PCIe Gen5 x16 slot, 2 x PCIe Gen4 x16 slot, 3 x PCIe Gen4 x8 slot
» 4 x M.2 M key expansion

Hardware Spec.

尺寸类型
尺寸类型 ATX Motherboard
系统
CPU AMD EPYC™ SP6 Siena 8-64 cores
内存 6 x 96GB 288-pin 4800MHz DDR5 RDIMM with ECC
内存上限 up to 576GB
散热方案/系统风扇 1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x4 pin)
物理特性
尺寸 (LxWxH) (mm) 244mm x 305mm (ATX)
净重 900g
存储
存储 8 x SATA : 6Gb/s connectors
4 x M.2(NGFF) : M Key (2242/2280, PCIe x4 for SSD) NVMe support slot
I/O 接口
显示输出 1 x Display Port : DP1.1a (1920 x 1080)
网络 LAN -
4 x 2.5GbE (I225-LM / I226-LM) Base-T LAN Ports
1 x GbE RJ45 IPMI management port
1 x RJ45 (RS-232 LAN Console port)
I/O接口 4 x 外部 USB 3.2 Gen1x1 : Type-A (5Gb/s)
2 x 内部 USB 2.0 : via one 2x4 pin connector, P=2.54
扩展 PCIe x16 -
1 x PCIe Gen5 x16 slot
2 x PCIe Gen4 x16 slot
PCIe x8 : 3 x PCIe Gen4 x8 slot
Other Features
TPM 1 x TPM header
电源
电源功耗 5VSB@0.7A, 5V@1.68A, 3.3V@0.87A, 12V@9.4A
(AMD SP6 Siena 8-64 cores with 192GB (six of 32GB) 4800MHz DDR5 memory)
电源供电 ATX/AT power supply
Support AT/ATX mode
环境
操作温度 0°C ~ 60°C
存储温度 -30°C ~ 70°C
Humidity 5% ~95%, non-condensing
认证
Safety & EMC CE/FCC compliant

Ordering Information

IMBAX-SP6-R10 B704;ATX motherboard supports AMD SP6 Siena 8-64 cores, 70W-225W TDP ,DDR5, Quad 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, RoHS

Package Contents

Package Content
  • 1 x IMBAX-SP6 single board computer

  • 1 x I/O Shielding

  • 2 x SATA cable

  • 1 x QIG
