IMB-V3000

尺寸类型
尺寸类型	Micro-ATX
系统
CPU	AMD V3000 Series Processors
内存	两个 288-pin 4800 MHz 双通道 DDR5 SDRAM 无缓冲 DIMMs
内存上限	96GB
散热方案/系统风扇	1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x 4 pin)
物理特性
尺寸 (LxWxH) (mm)	244mm x 244mm
净重	GW: 1200g / NW: 700g
存储
存储	2 x SATA : 6Gb/s (RAID 0/1 supported)

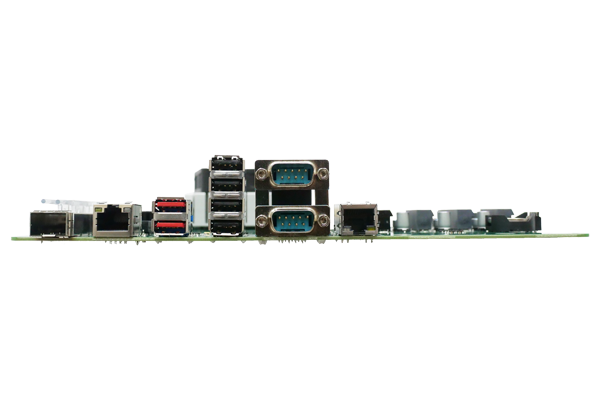

I/O 接口
网络	2 x LAN - LAN1: 10GbE SFI (SFP+) LAN2: 10GbE ASE-T (RJ45)
I/O接口	2 x 外部RS-232/422/485 : RS-485 支持 AFC
	4 x 内部RS-232 : 2x5 pin, P=2.54
	4 x 外部 USB 2.0 : Type-A
	1 x DIO : 12位数字 I/O (2x7 pin)
	2 x 外部 USB 3.2 Gen2x1 : Type-A, 10Gb/s
扩展	1 x PCIe x16 : PCIe Gen4 x16 (Slot1) with x8 信号
	1 x PCIe x4 : PCIe Gen4 x4 open-end
	2 x PCIe x1 : PCIe Gen4 x1
	2 x M.2(NGFF) - 1 x M.2 M Key (2242/2280, PCIe Gen4 x1) 支持 NVMe 1 x M.2 B Key (2242/2280, PCIe Gen4 x1) 支持 NVMe (IPMI)
电源
电源功耗	TBD
电源供电	ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant
环境
操作温度	-10°C ~ 60°C
存储温度	-30°C ~ 70°C
Humidity	5% ~95%, 无冷凝

尺寸类型

Micro-ATX

系统

CPU

AMD V3000 Series Processors

内存

两个 288-pin 4800 MHz 双通道 DDR5 SDRAM 无缓冲 DIMMs

内存上限

96GB

散热方案/系统风扇

1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x 4 pin)

物理特性

尺寸 (LxWxH) (mm)

244mm x 244mm

净重

GW: 1200g / NW: 700g

存储

2 x SATA : 6Gb/s (RAID 0/1 supported)

I/O 接口

网络

2 x LAN -
LAN1: 10GbE SFI (SFP+)
LAN2: 10GbE ASE-T (RJ45)

I/O接口

2 x 外部RS-232/422/485 : RS-485 支持 AFC

4 x 内部RS-232 : 2x5 pin, P=2.54

4 x 外部 USB 2.0 : Type-A

1 x DIO : 12位数字 I/O (2x7 pin)

2 x 外部 USB 3.2 Gen2x1 : Type-A, 10Gb/s

扩展

1 x PCIe x16 : PCIe Gen4 x16 (Slot1) with x8 信号

1 x PCIe x4 : PCIe Gen4 x4 open-end

2 x PCIe x1 : PCIe Gen4 x1

2 x M.2(NGFF) -
1 x M.2 M Key (2242/2280, PCIe Gen4 x1) 支持 NVMe
1 x M.2 B Key (2242/2280, PCIe Gen4 x1) 支持 NVMe (IPMI)

电源

电源功耗

TBD

电源供电

ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant

环境

操作温度

-10°C ~ 60°C

存储温度

-30°C ~ 70°C

Humidity

5% ~95%, 无冷凝

IMB-V3000-C48-R10	micro-ATX motherboard supports AMD V3000 series processor, DDR5, dual 10GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMB-V3000-C46-R10	micro-ATX motherboard supports AMD V3000 series processor, DDR5, dual 10GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMB-V3000-C44-R10	micro-ATX motherboard supports AMD V3000 series processor, DDR5, dual 10GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMB-V3000-C18-R10	micro-ATX motherboard supports AMD V3000 series processor, DDR5, dual 10GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMB-V3000-C16-R10	micro-ATX motherboard supports AMD V3000 series processor, DDR5, dual 10GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMB-V3000-C14-R10	micro-ATX motherboard supports AMD V3000 series processor, DDR5, dual 10GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
