End of Life Notice
* Effective Date: 2024/05/15
Intel® 14nm GEN Atom™ Apollo Lake
![Improved 3D & Full-HD Media Performance](https://webdls.ieiworld.com/data/_prod-detail-feature/WAFER-AL/WAFER-AL_Features_page_01.png)
Improved 3D & Full-HD Media Performance
- » Fast HD video acceleration over previous generation
- » Up to 15 simultaneous 1080p30 decode streams
- » Fast graphics and media performance @ ISO power over previous generation
![Reliable and Efficient Computing](https://webdls.ieiworld.com/data/_prod-detail-feature/WAFER-AL/WAFER-AL_Features_page_02.png)
Reliable and Efficient Computing
- » Highly reliability with ECC
- » Wide termperatue SKU with Tj: -40°C ~ 110°C and extreme 15-years lifetime for Industrial applications
![Enhanced Security Executions](https://webdls.ieiworld.com/data/_prod-detail-feature/WAFER-AL/WAFER-AL_Features_page_03.png)
Enhanced Security Executions
- » Integral Intel® Security Engine
- » Fast cryptographic execution with Intel® AES New Instructions (Intel® AES-NI)
- » Secure/measured booting features
DP++ Dual-mode Output
IEI provides products support Dual-mode DisplayPort output which can auto detect the plugged-in cable type and provide multiple option of display output in single port.
![DP++ Dual-mode Output](https://webdls.ieiworld.com/data/_prod-detail-feature/WAFER-AL/WAFER-AL_Features_page_04.png)
Low Profile, Flexible Deployment
Thin type products with single layer rear I/O and low profile thermal solution design are suitable for open frame panel PC solutions and also the choice for thin compact size embedderd box solutions.
![Low Profile, Flexible Deployment](https://webdls.ieiworld.com/data/_prod-detail-feature/WAFER-AL/WAFER-AL_Features_page_05.png)
![Low Profile, Flexible Deployment](https://webdls.ieiworld.com/data/_prod-detail-feature/WAFER-AL/WAFER-AL_Features_page_06.png)
Product Overview
![Product Overview](https://webdls.ieiworld.com/data/_prod-detail-feature/WAFER-AL/WAFER-AL_Features_page_07.png)
![Product Overview](https://webdls.ieiworld.com/data/_prod-detail-feature/WAFER-AL/WAFER-AL_Features_page_08.png)
![Product Overview](https://webdls.ieiworld.com/data/_prod-detail-feature/WAFER-AL/WAFER-AL_Features_page_09.png)
Application Field

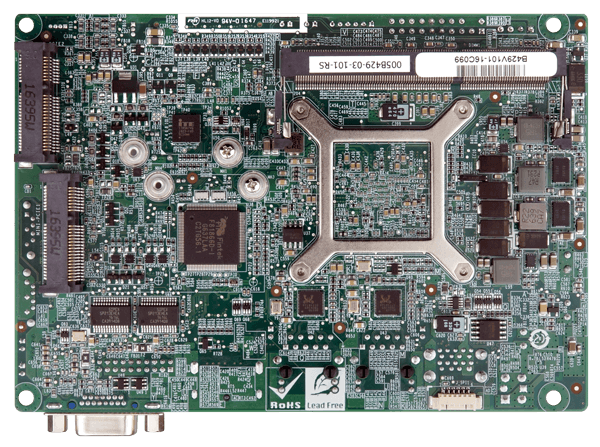

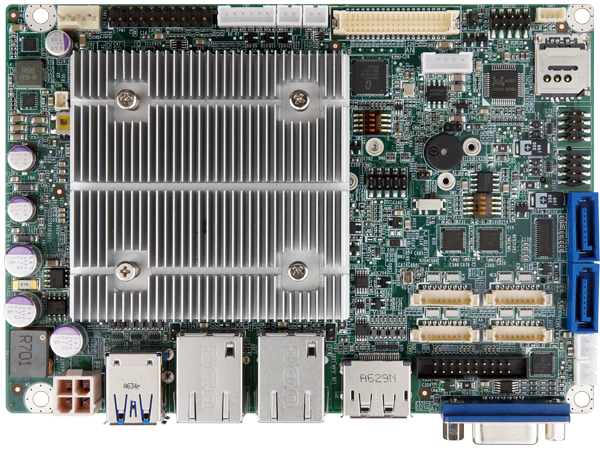

The WAFER-AL, a 3.5” SBC, has a PCIe Mini slot and a SIM card holder to support Wi-Fi or LTE modules, allowing the system to transfer real-time data to the management center over OCPP protocol. Therefore, EV charging stations and central management systems from different vendors can communicate with each other securely. USB ports and RS-232 ports are also available for NFC payment system connection. The on-board Intel® Apollo Lake processor consumes only 6 W, which is ideal for IoT application while enabling fanless operation and eliminating CPU fans. Other application field including factory automation, smart home and medical equipment manufacturing.
![Application Field](https://webdls.ieiworld.com/data/_prod-detail-feature/WAFER-AL/10-m.jpg)
Hardware Spec.
系统 | |
---|---|
CPU |
Intel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W) Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W) |
内存 | One 204-pin 1866/1600MHz Single-channel DDR3L DIMMs |
内存上限 | 8GB |
物理特性 | |
尺寸 (LxWxH) (mm) | 146 X 102 |
净重 | 250 |
存储 | |
存储 | 2 x SATA :6Gb/s with 5V SATA power connector (no RAID) |
I/O 接口 | |
显示输出 | 1 x VGA :up to 1920x1200@60Hz |
1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz) | |
1 x iDP :colay with VGA, support by request | |
网络 | 2 x 描述: PCIe GbE LAN Realtek RTL8111 Controller |
音频 | 描述: Realtek ALC662 HD codec |
1 x Front Audio :2x5 pin | |
I/O接口 | 2 x 内部RS-232 :1x9 pin, P=1.25 |
2 x 内部RS-232/422/485 :1x9 pin, P=1.25 | |
4 x 内部 USB 2.0 :2x4 pin, P=2.0 | |
扩展 | 2 x PCIe mini Card Slot :1 x supports mSATA, colay with SATA port 2, 1 x supports SIM card holder |
Other Features | |
TPM | 2x10 pin |
电源 | |
电源功耗 | 12V@2.57A (Intel® Pentium® N4200 up to 2.5GHz with 8GB DDR3L memory) |
电源供电 |
12V DC input power Support AT/ATX mode |
环境 | |
操作温度 | -20°C ~ 70°C |
存储温度 | -20°C ~ 70°C |
Humidity | 5% ~ 95%, non-condensing |
认证 | |
Safety & EMC | CE/FCC compliant |
Ordering Information
WAFER-AL-N2-R11 | 3.5" SBC supports Intel® 14nm quad-core Pentium® N4200 2.5GHz on-board SoC with tripple display, Dual PCIe GbE, USB 3.0, PCIe Mini with mSATA support, SATA 6Gb/s, COM, Audio and RoHS |
---|---|
WAFER-AL-N1-R11 | 3.5" SBC supports Intel® 14nm dual-core Celeron® N3350 2.4GHz on-board SoC with tripple display, Dual PCIe GbE, USB 3.0, PCIe Mini with mSATA support, SATA 6Gb/s, COM, Audio and RoHS |
