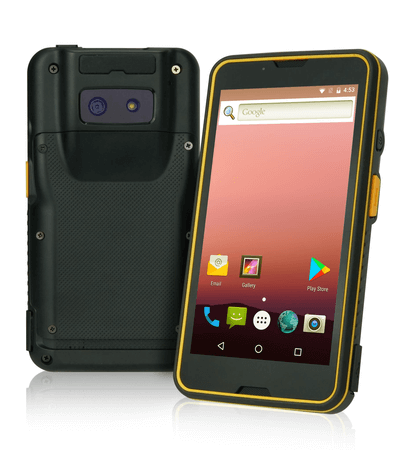

MODAT-550A

移动数据收集器

End of Life

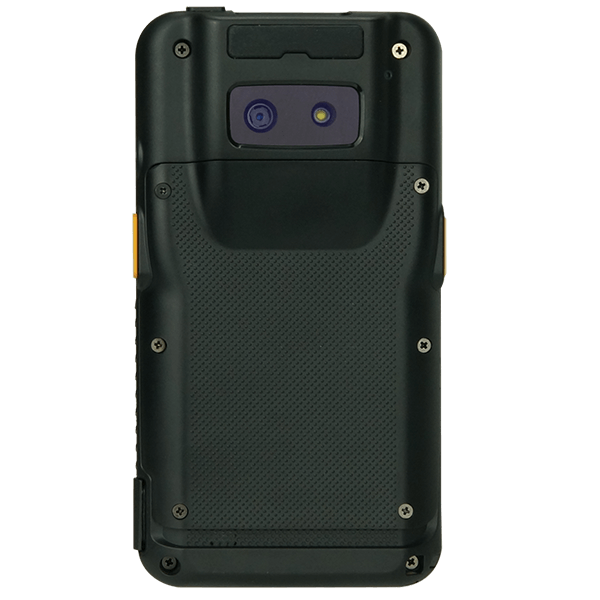

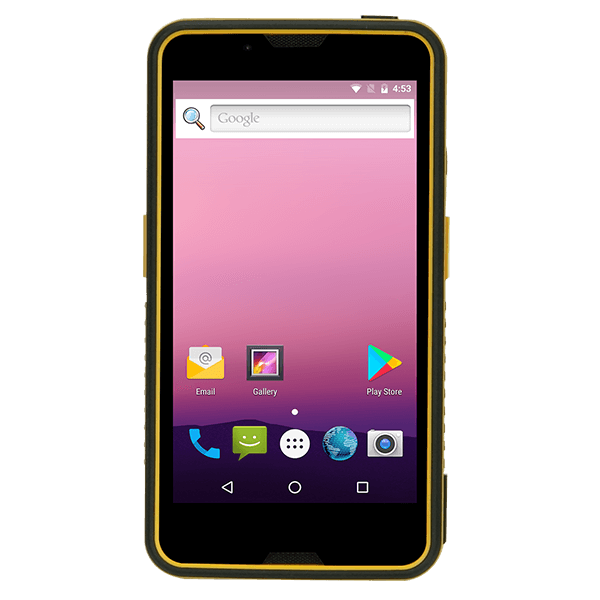

MODAT-550A-PDA-mobile-device
MODAT-550A-PDA-mobile-device
  • MODAT-550A-PDA-mobile-device
  • MODAT-550A-PDA-mobile-device

End of Life Notice

* Effective Date: 2021/09/14

» 1.5m 跌落保护和 IP 65 保护
» 八核 64-bit Cortex-A53 1.5 GHz 处理器
» 5.5＂ 显示 PDA
» 可选 GSM (850, 900, 1800, 1900)
WCDMA (Band 1, 2, 5, 8)
TDS-CDMA (Band 34, 39)
LTE FDD (Band 1, 2, 3, 4, 5, 7, 8, 20)
TDD (Band 38, 39, 40, 41b)
» Micro USB 端口和 microSD 卡插槽 (上限 64 GB) ，连接效率提升
» Android 7.0 操作系统
» 1D/2D 成像扫描引擎
» NFC (设备到设备通信，读卡器).

Specifications

Hardware Spec.

通信
蓝牙 4.0 LE
GPS GPS/Glonass
调制解调器 GSM (850, 900, 1800, 1900)
WCDMA (Band 1, 2, 5, 8)
TDS-CDMA (Band 34, 39)
LTE FDD (Band 1, 2, 3, 4, 5, 7, 8, 20)
TDD (Band 38, 39, 40, 41b)
Wi-Fi 802.11a/b/g/n
数据采集
条形码 1D/2D imager scan engine
摄影机 13-megapixel AF rear camera
显示
亮度(cd/m2) 300
分辨率上限 1080x1920
触摸屏 5-point capacitive
可视角度 80/80/80/80 deg
运行环境
跌落保护 1.5m
运行环境保护 IP 65
湿度 10% ~ 95%, non condensing
操作温度 -10°C ~ 50°C
存储温度 -20°C ~ 60°C
I/O 接口
音频 1 x 0.5W speaker
1 x Headset/Mic-in
USB 1x High-speed Micro USB 2.0 OTG
I/O 接口
I/O 接口 1 x Mic
1 x MiniSD Slot
1 x Power In
1 x Power switch
1 x SD Slot
1 x Speaker
1 x USB 2.0
指示器和按钮
LED 指示灯 Green/Red
物理特性
尺寸 (LxWxH) (mm) 160.9 mm x 85.4 mm x 28.85 mm
净重 Under 380g
电源
电池 4000 mAh
电源适配器 5V/3A
系统
CPU Octa-core 64-bit Cortex-A53 1.5 GHz processor
板载内存 16GB eMMC
2GB LPDDR3
操作系统 Android 7.0
存储 microSD slot up tp 64GB

Ordering Information

MODAT-550A-OA53-R10-US 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, US reg, RoHS
MODAT-550A-OA53-R10-TW 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, TW reg, RoHS
MODAT-550A-OA53-R10-EU 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, EU reg, RoHS
MODAT-550A-OA53-R10-CN 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, CN reg, RoHS
MODAT-550A-OA53-ET-R10-US 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, US reg, RoHS
MODAT-550A-OA53-ET-R10-TW 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, TW reg, RoHS
MODAT-550A-OA53-ET-R10-EU 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, EU reg, RoHS
MODAT-550A-OA53-ET-R10-CN 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, CN reg, RoHS

Package Contents

Package Content

  • 1 x USB 线

  • 1 x AC-DC 适配器

  • 1 x 手带
